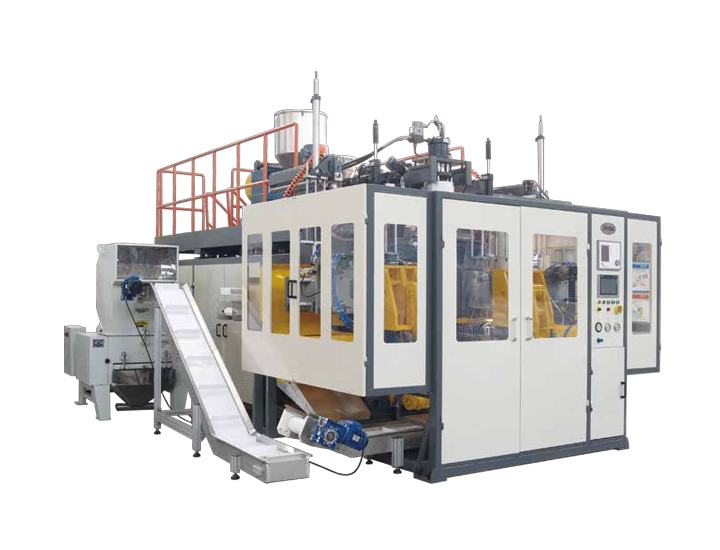

JWZ-BMQC05D/12D/20D Double Station Blow Molding Machine

Place of Origin:

China

Brand Name:

Jwell

Certification:

ISO CE
INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Description:
Performance and advantages

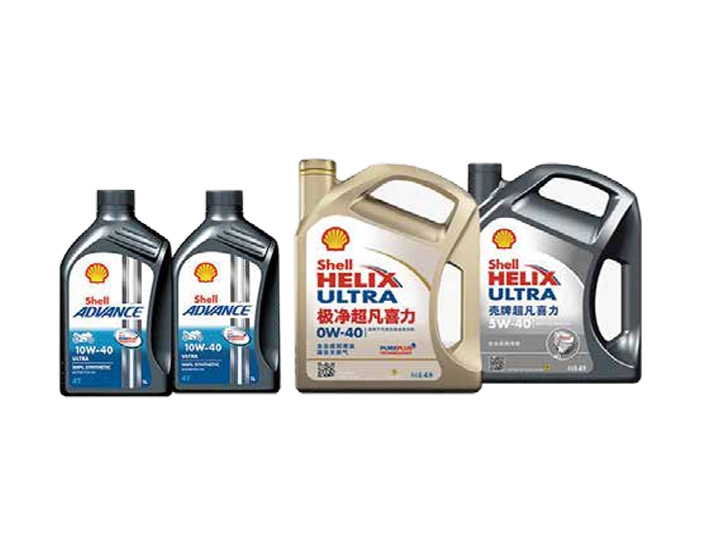

Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
Optional multi-layer co-extrusion.
Optional view strip line system.
According to the product size,select different cavity of die head.
According to the different material,optional JW-DB single station hydraulic screen exchanger system.
According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on line.




Specifications:

Model

Unit

BM05D

BM12D

BM20D

Max product volume

L

5

12

20

Dry cycle

Pc/h

700*2

 600*2

600*2

Die head structure

Continuous type

Main screw diameter

mm

75

90

90

Max plasticizing capacity (PE)

kg/h

90

160

160

Driving motor

Kw

30

45

45

Oil pump motor power

Kw

11

15

15

Clamping force

KN

70

120

160

Space between platen

mm

150-510

 240-640

280-680

Platen size W*H

mm

350*400

 450*500

500*520

Max.mould size

mm

360*400

 500*520

560*520

Platen moving stroke

mm

450/520

 600/650

650

Heating power of die head

Kw

7.5

10

12.5

Machine dimension L*W*H

m

3.7*3.1*2.7

4.2*3.2*3.0

4.3*3.2*3.1

Machine weight

T

8.5

12

14

Total power

Kw

60

90

93


Note:The specifications are subject to change without prior notice.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
