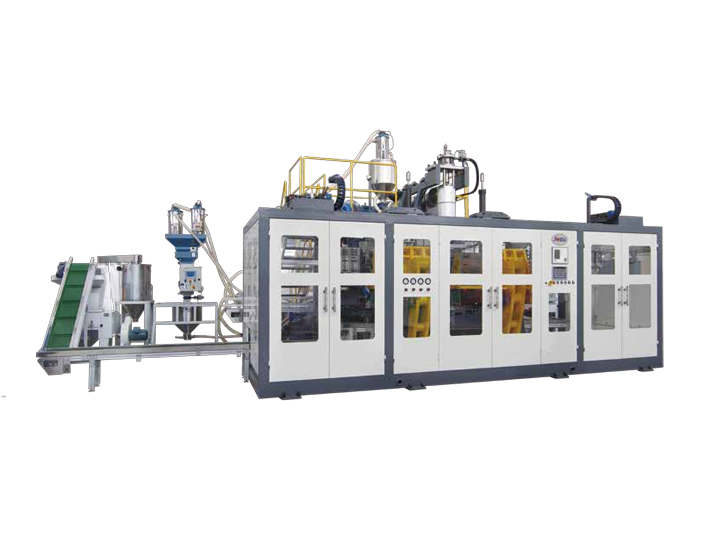

JWZ-BMHG30DN-C Blow Molding Machine

Place of Origin:

China

Brand Name:

Jwell

Certification:

ISO CE

INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Description:
Performance and advantages

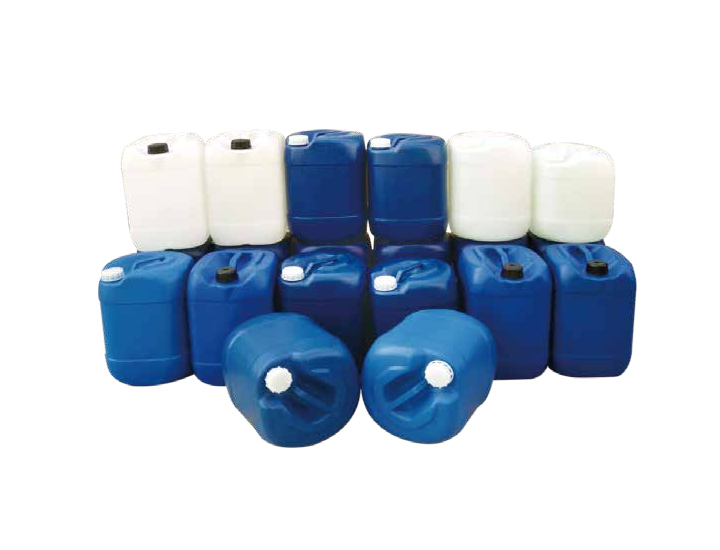

Suitable for producing 15-30L different size Chemical packaging jerrycan.
Adopt continuous type die head, up-blowing structure, convenient for product auto-deflashing on-line, scrap conveying on line, finished product leak testing on line, conveying,packing, etc.,reducing the working cost and increasing the production ratio.
Adopt toggle type platen structure, have the advantages of uniform-clamping, big clamp force, assembling large mould, easier dismounting& assembling the mould.
Optional double layer co-extrusion system.
Optional view strip line system.
Optional hydraulic servo control system.

Specifications:

Model

Unit

BM30DN-C

Max product volume

L

30

Dry cycle

Pc/h

450*2

Die head structure



连续式 Continuous type

Main screw diameter

mm

100

Max plasticizing capacity (PE)

kg/h

190

Driving motor

Kw

55

Oil pump motor power

Kw

18.5

Clamping force

KN

300

Space between platen

mm

340-860

Platen size W*H

mm

580*600

Max.mould size

mm

500*600

Platen moving stroke

mm

800

Heating power of die head

Kw

20

Overall dimension L*W*H

m

5.6*4.8*4.5

Machine weight

T

18

Total power

Kw

125


Note:The specifications are subject to change without prior notice.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
