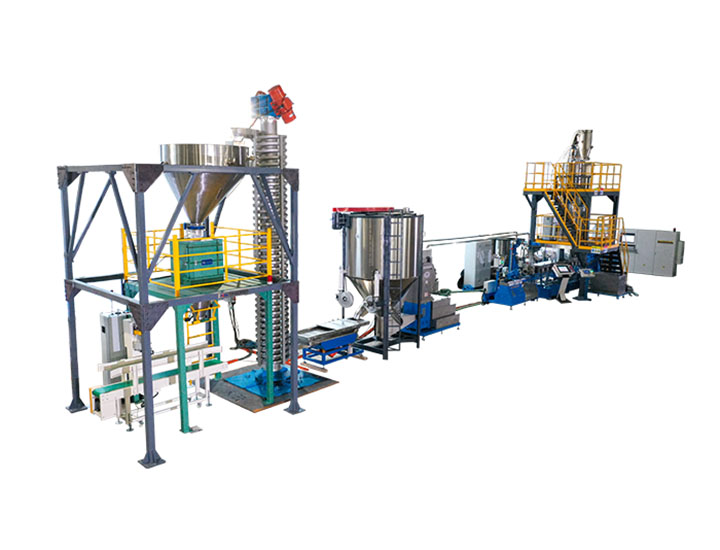

Starch filled Bio-plastic PLA PBAT compounding line

Place of Origin: China
Brand Name: Jwell
Certification: ISO CE
Minimum Order Quantity: 1
Payment Terms: 30% down payment by T/T, 70% rest payment before shipment by T/T.
INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Description:

Plastic has been widely developed in many fields because of its advantages of light weight, high strength, stable chemical properties and low cost.The plastics industry is developing very fast, and there is no proper way to dispose of the used plastics, which cause serious pollution to the natural environment.Thus, the study of biodegradable plastics is inevitable!Solid waste such as plastic will pollute the environment, buried deep will invade the land, burning will pollute the air, these are not the fundamental solutions to the problem.The fundamental solution to the problem is to develop degradable plastics instead of non-degradable plastics.Degradable plastics have been developed to protect the environment.It makes a lot of sense.The excellent performance of degradable plastics is obvious and has a broad development prospect.



Specifications:



Model

L/C

Speed

Motor power

Torque level

Capacity

Typical formula

CJWH-52

40-56

300rpm

45KW

9N.m/cm3

150KG/H

Bio-plastic

+55%Starch

+15%Glycerine

CJWH-65

40-56

300rpm

75KW

9N.m/cm3

240KG/H

CJWH-75

40-56

300rpm

132KW

9N.m/cm3

440KG/H

CJWH-95

40-56

300rpm

250KW

9N.m/cm3

820KG/H

CJWS-52

40-56

300rpm

55KW

11N.m/cm3

190KG/H

CJWS-65

40-56

266rpm

90KW

11N.m/cm3

310KG/H

CJWS-75

40-56

300rpm

160KW

11N.m/cm3

550KG/H

CJWS-95

40-56

300rpm

315KW

11N.m/cm3

1060KG/H

CJWS-75 Plus

44-56

330rpm

200KW

13.5N.m/cm3

700KG/H



Competitive Advantage:

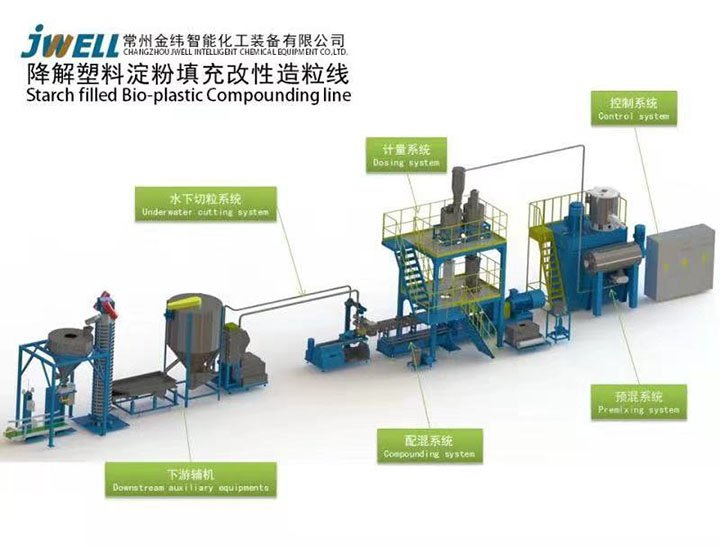

Dosing system:Raw material of bio-plastic, starch and plasticizer are fed into twin screw extruder via accurate LIW feeders separately with high automation and flexibility to adjust formulation.

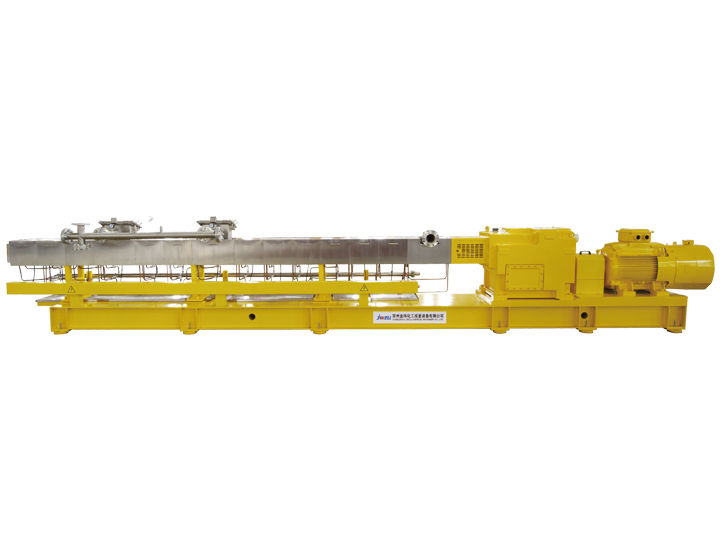

Compounding system:torque gearbox, wear resistant & corrosive resistant barrels and screw elements, high torque shaft and safety clutch, efficient heating and precise control to ensure stable, reliable and long term production.

Underwater cutting system:Advance underwater cutting system can produce elliptical pellet with high automation, the closed system has no emission of smoke and dust to environment and can adapt to various capacity requirements.

Downstream auxiliary equipments:Rich and reasonable downstream equipments realize homogenization, sieving, drying & cooling until automatic packing smoothly.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

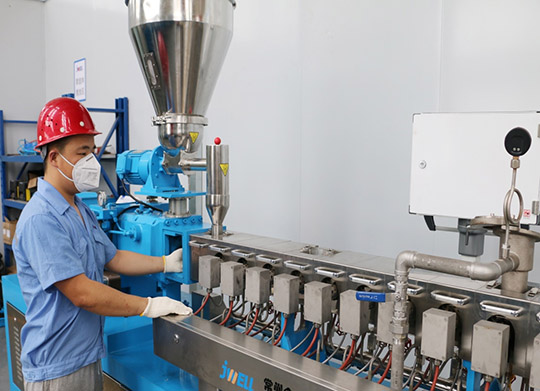

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

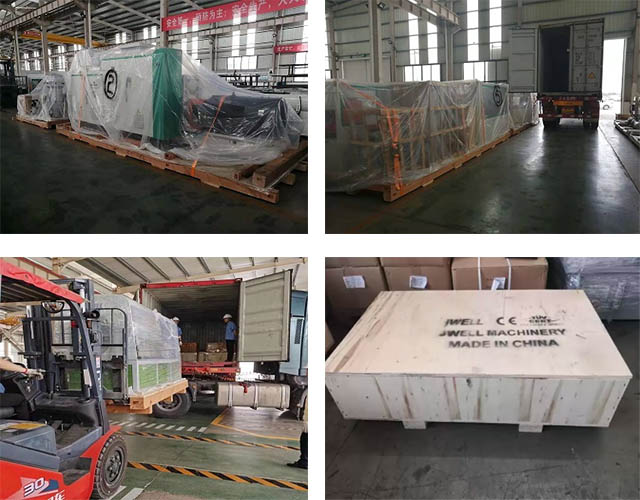

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
