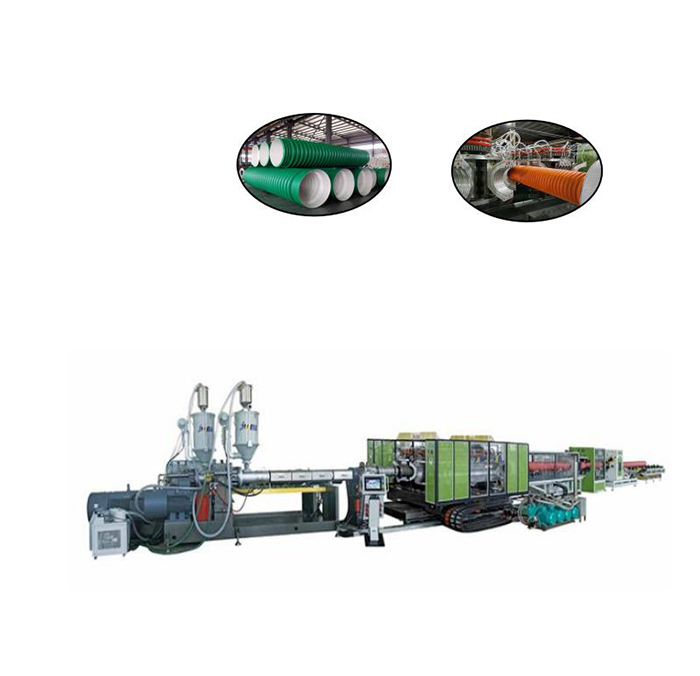

200mm - 600mm Jwell HDPE PP PVC Double Wall Corrugated Pipe Extrusion Line
| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE |
| Minimum Order Quantity: | 1 |
| Payment Terms: | 30% down payment by T/T, 70% rest payment before shipment by T/T. |
- Details
- Competitive Advantage
- Packing & Shipping
Double wall corrugated pipe is mature product which has the advantage of low weight, low cost, anti-corrosion, good ring stiffness and flexibility. Our company has developed PE double wall corrugated pipe extrusion line for more than 20 years. We have the whole series of double wall corrugated pipe machine: horizontal type, vertical type.
The new generation high speed and low energy consumption horizontal double wall corrugated pipe extruder line is researched and developed by Jwell company which is the top manufacturer of plastic pipe machines in world. we are committed to continuously helping customers reduce pipe production costs and improve their competitive edge through continuous innovation. The forming blocks are cooled by water and It's speed is 2 time as the old type .The line is suitable for producing pipe range ID40mm to ID1500mm
Machine features

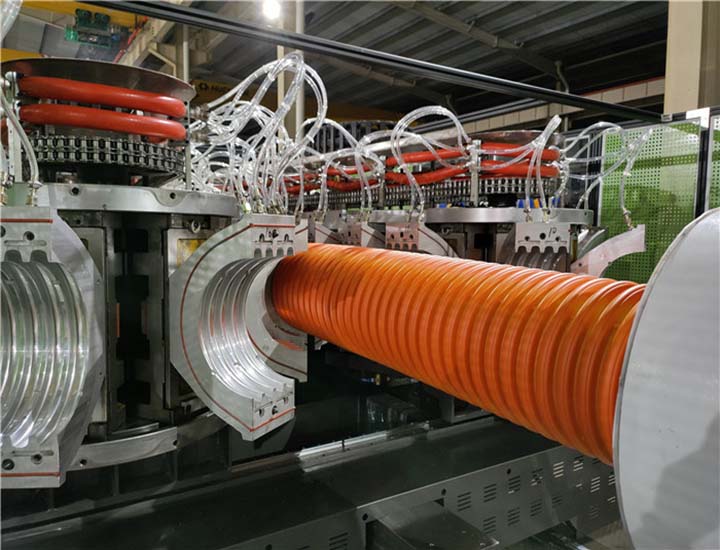

● Sizing sleeve is made of aluminum alloy, and the surface is wear-resistant. The tube waveform can be calculated by special software program, and the ring stiffness can be obtained at the same weight.
● Cooling water is injected at both forming and return sections (such models in the market are air-cooled and without water).
● The molding machine has special structure to effectively reduce the dislocation of pipe (with patent protection).
● The molding machine has special structure to effectively inhibit the upwarping and ensure that the module will not deform (with patent protection).
● The platform is equipped with guide device, which can realize synchronous access of mold base.
● The stability of vacuum can be improved by the vacuum box of the molding machine.
● The molding machine is equipped with backup power supply, which can ensure the smooth withdrawal of the equipment from the production position in case of sudden power failure to prevent the locking
● Special structure of water tray can ensure the high flow cooling water injected into module (with patent protection).
● The movement of lower frame and upper frame are all electrically adjusted.
Machine specification
| Type | Pipe size(mm) | Max.Speed(m/min) | Total power(KW) |
| JWBW-150 | ID40-150 | 15 | 270 |
| JWBW-300 | ID100-300 | 7.5 | 340 |
| JWBW-600 | ID200-600 | 5.5 | 490 |
| JWBW-800 | ID200-800 | 4.2 | 615 |
| JWBW-1000 | ID300-1000 | 2.9 | 795 |
| JWBW-1200 | ID400-1200 | 2 | 890 |

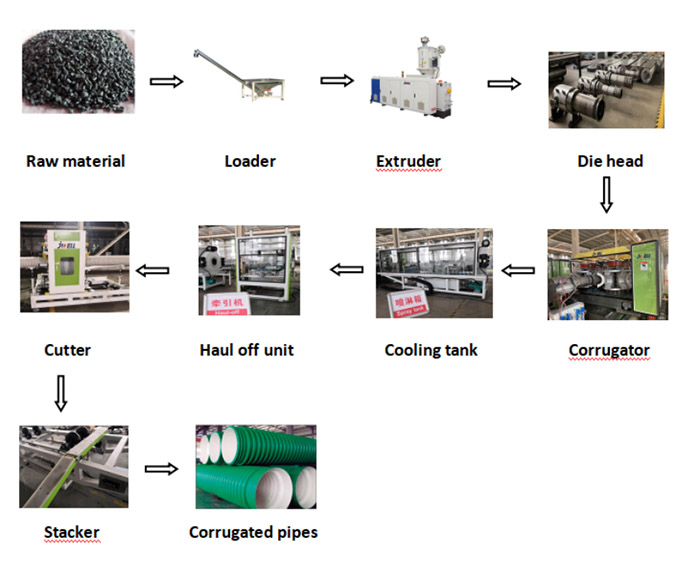

Production Flow Chart

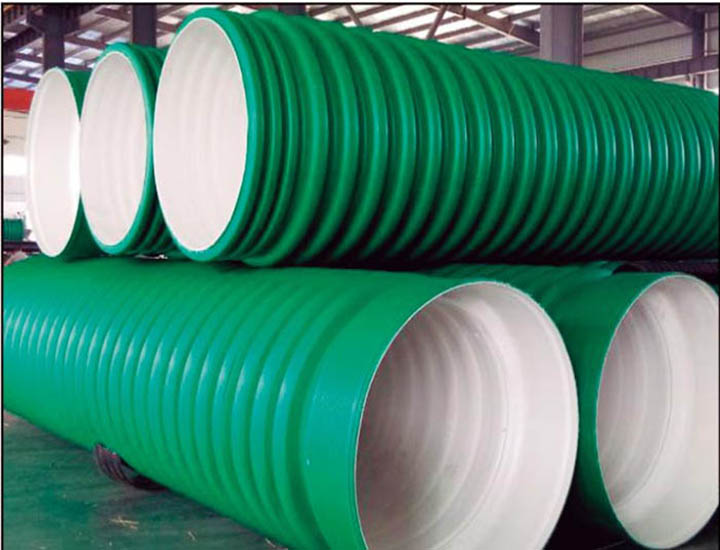

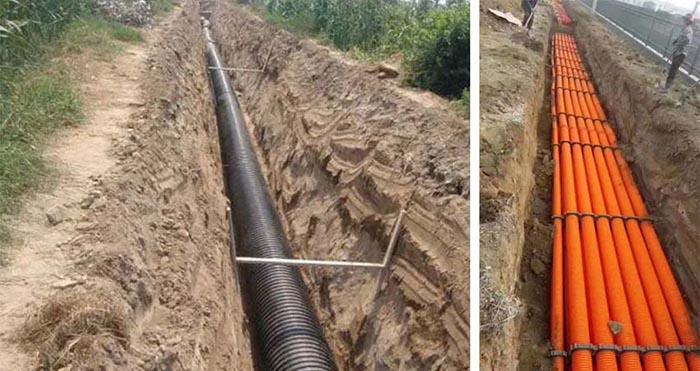

Pipe application

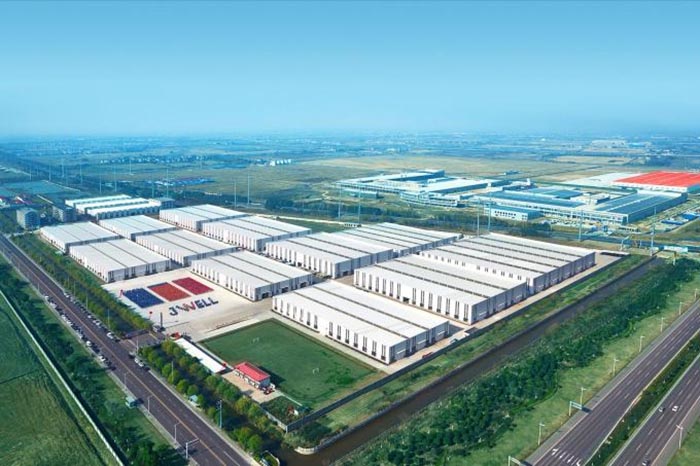

Factory
Marketing team
After-sale service
1.The guarantee period is 1 year and service is available lifelong. The cost of broken components will be covered by the buyer, but during guarantee period, the cost of broken components will be covered by the seller, except the easy broken parts and damaged parts by human reasons.
2.Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible
3.Buyer can send engineers to our JWELL company for training
4.We supplies the complete technical documents and the relative drawings of the electric components in Chinese and English
5.We will send enough technicians to the Buyer’s company for installation and commissioning of machines.The cost caused by the seller’s technicians in customer’s country (including shuttle trip ticket between China and the Buyer’s country , inland traffic, medical fees, lodging, dinner and so on) will be covered by buyer
