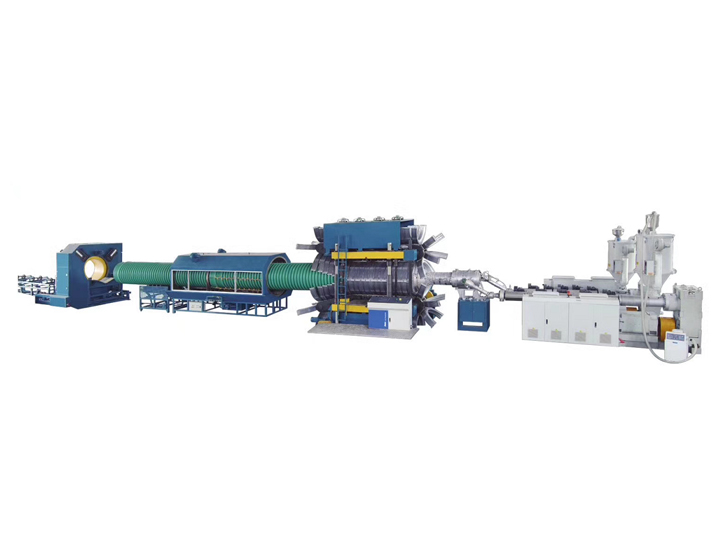

HDPE,PP,PVC Vertical Type Double Wall Corrugated Pipe and PVC Ribbed Pipe Extrusion line

Place of Origin:

China

Brand Name:

Jwell

Certification:

ISO CE

INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Description:

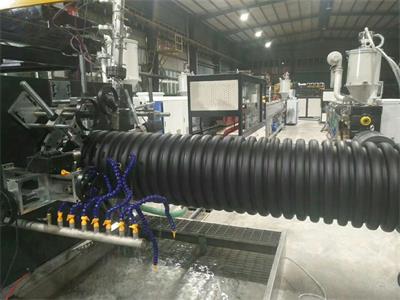

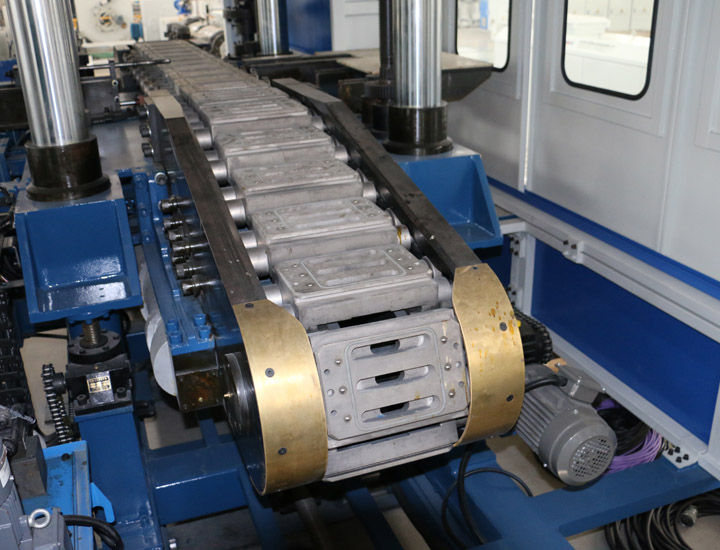

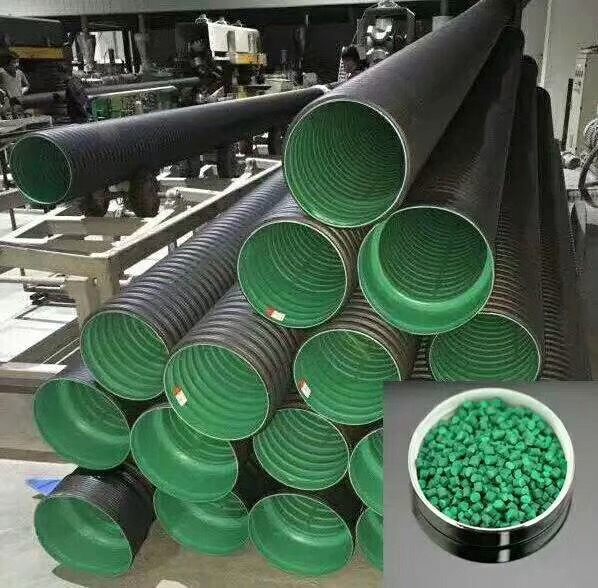

DWC pipe is mainly used for water drainage system.It is a fully computer controlled line.It features high and stable output capacity,and highly automatic operation.For HDPE,you can chose high efficient single screw extruder.For PVC,you can chose conical twin-screw extruder or parallel twin-screw extruder.Forming system consists mold and corrugator.Mold blocks can be easily changed and they have air or water cooling system.The belling process is on line.High precision cutting can be guaranteed by cutting machine.The production line can also be equipped with SIEMENS PLC system.



Specifications:



Type

Pipe diameter(mm

PVC output(kg/h)

HDPE output(kg/h)

Max speed(m/min)

Total power(kw)

JWSBL-600

200-600

650-800

600-800

3.5

500

JWSBL-800

200-800

1200

1000

3.0

680

JWSBL-1000

200-1000

1300

1200

2.5

710

JWSBL-1200

600-1200

1400

1400

1.0

800

Note:The specifications are subject to change without prior notice.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
