High Pressure RTP Twisted Composite Pipe Extrusion Line

起源地;原产地：

中国

品牌：

杰威尔

认证：

ISO认证
INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Description:

The thermoplastic reinforced pipe RTP has three layers: the inner layer is anti- erosion and wearing-resistant PE pipe;

the middle layer is reinforced twisting layer (the material is high-intension synthesized fiber, or glass fiber, carbon

fiber or fine metal thread); the outer layer is PE for protection use. The most popular reinforce material is Aramid fiber.

The pressure of Aramid fiber reinforced pipe is up to 9-14Mpa. The explode pressure can be 40Mpa.

The RTP connection technology
The connection method between the RTP and RTP, RTP side and other fittings

(such as valve, three direction fittings) is: Electrical welding-hot welding and mechanical press.

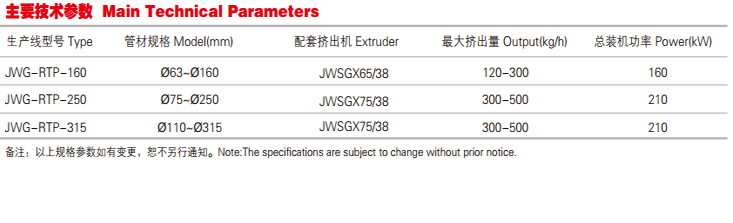

Specifications:

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
