Jwell DYPS-G series strong crusher

Place of Origin:

China

Brand Name:

Dyun

Certification:

ISO CE
INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Instructions：

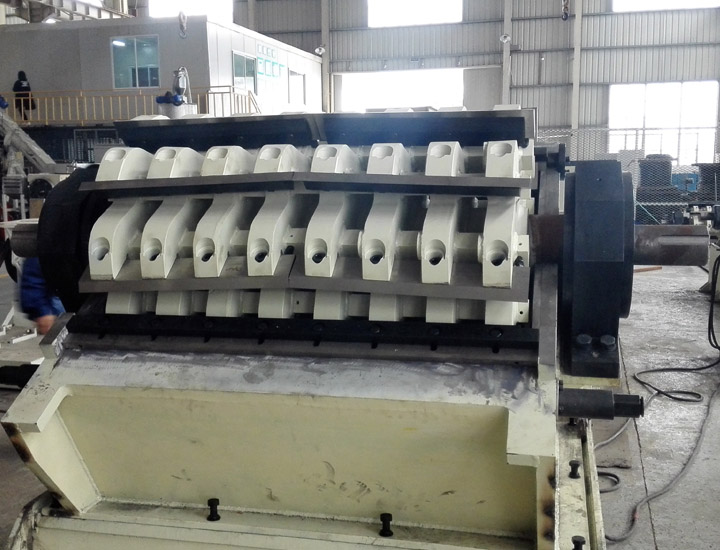

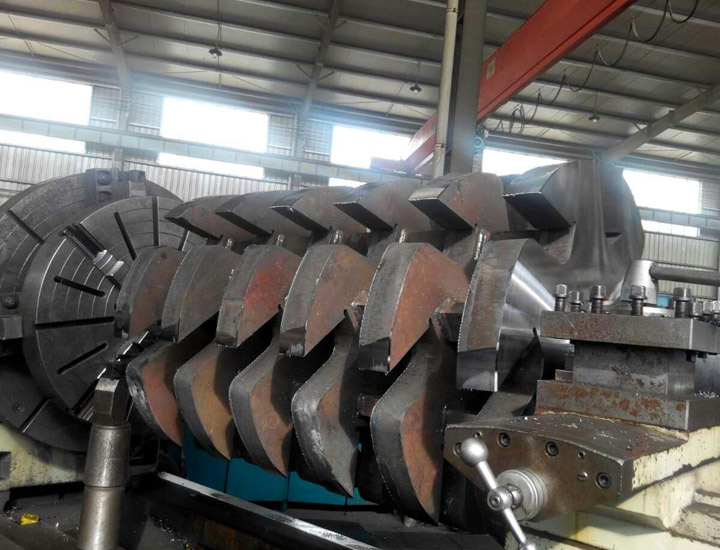

DYPS-G series heavy pipe crusher can crush middle diameter pipe directly without shredding in advance.

This series crusher inlet is specially designed for plastic pipe, the pipe and the crusher rotor form a certain

angle to reach the best crushing effect, crushed pipes and profiles up to 6 meters in length.  The crusher

chamber is designed with third fixed knife, which can change the required crushing material first cutting

points. This kind construction can reduce the impact force for high strength and large volume of material

and avoid the possibility of blocking  material.



Main technical parameters：



MODEL

FEED MOUTH SIZE

(MM)

MAIN MOTOR POWER

(KW)

MOVING KNIFE QUANTITY

     (PIS)

FIXED KNIFE QUANTITY

(PIS)

ROTOR DIAMETER

(MM)

OUT PUT (KG/H)

DYPS-G 700

500*500

22-37

6

4

Ф500

400

DYPS-G 800

600*600

55-75

6/10

6

Ф600

600

DYPS-G 1000

700*700

75-132

10/14

6

Ф700

800

DYPS-G 1200

800*800

110-160

14/18

6

Ф800

1000



 Note:The specifications are subject to change without prior notice.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
