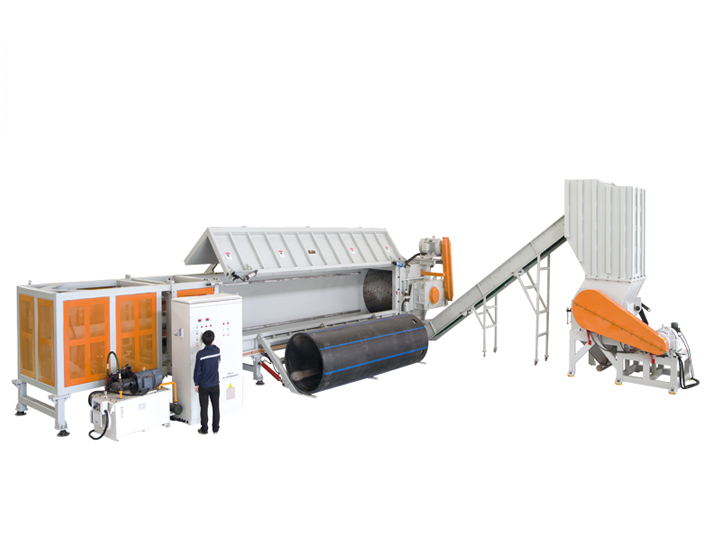

Jwell DYSSG Pipe Crusher and shredder Unit

Place of Origin:

China

Brand Name:

Dyun

Certification:

ISO CE
INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Instructions：

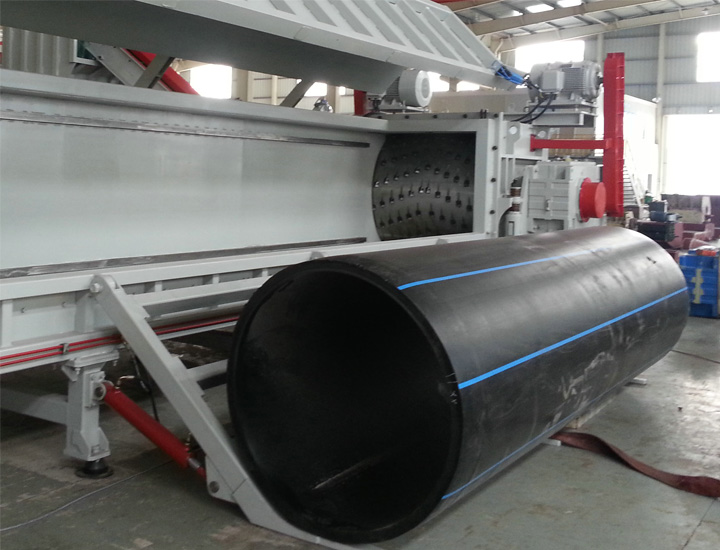

DYSSG shredder is able to shred the PE, PP, PVC pipe with dia.1200mm, the length of 3-6m pipe can be shredded directly

without cutting, and the rotary speed is slow and stable. Variety of pipes is put into the horizontal feeding tank, and the

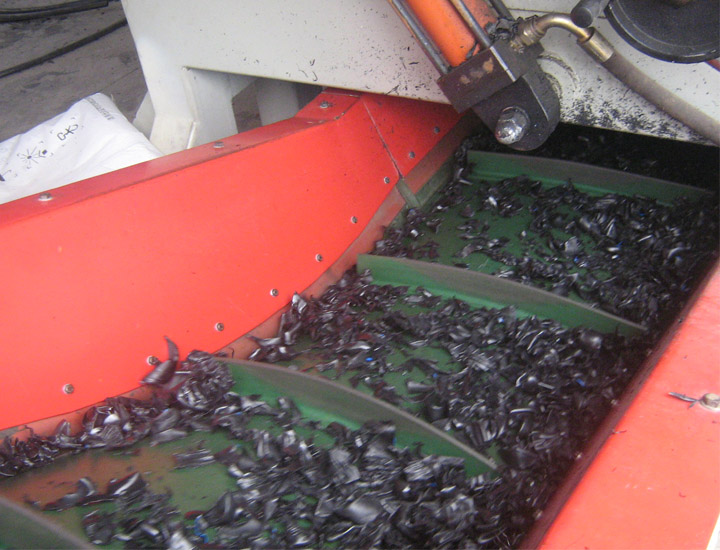

tanks closed automatically, and push the pipe by hydraulic into the center axis for shredding. The material after crushing

is transported by conveyor belt for secondary crushing in order to get the requested    granule.

DYSSG shredder has the main advantage of energy saving safe and efficient, and the system is controlled by PLC

center control system.



Main technical parameters：

MODEL

MAX. SHREDDER PIPE

(DIAMETER MM)

DRIVE POWER

(KW)

MECHANICAL PUSHER POWER     (KW)

OUT PUT

(KG/H)

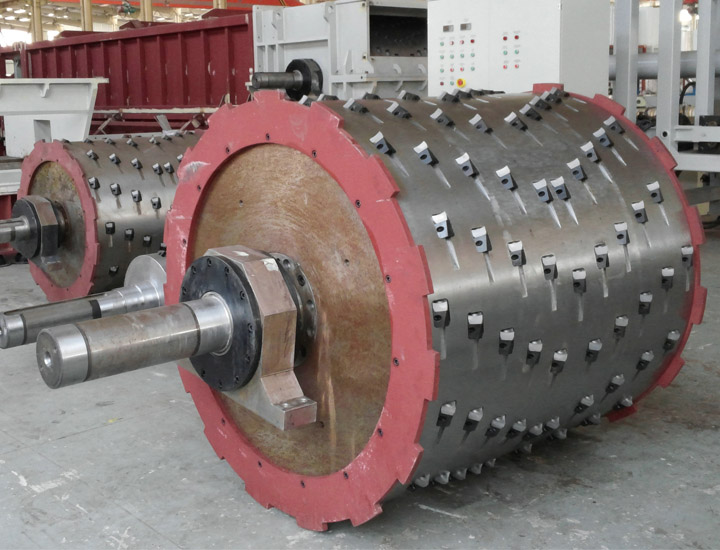

ROTOR BLADE SWING DIAMETER

(MM)

ROTOR SPEED (RPM)

DYSSG- 630

630

2*30

11

800-1000

Ф848

39

DYSSG- 800

800

2*37

11

1000-1200

Ф1028

33

DYSSG- 1000

1000

2*45

15

1200-1500

Ф1258

27

DYSSG- 1200

1200

2*55

15

1500-2000

Ф1478

23



Note:The specifications are subject to change without prior notice.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
