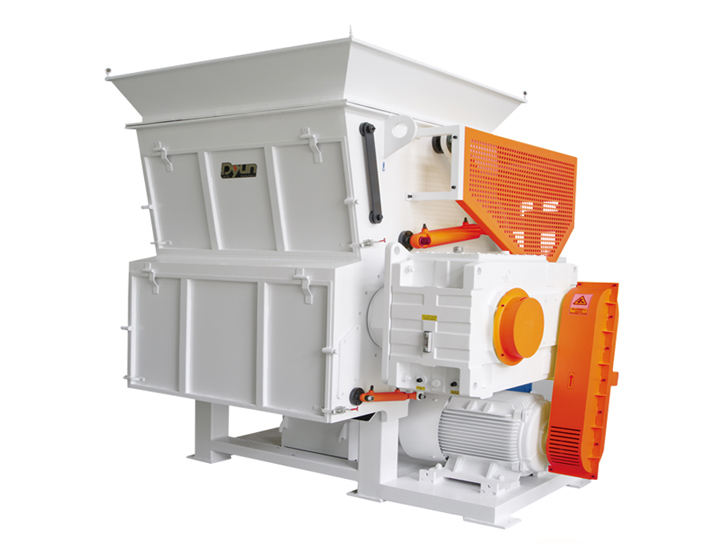

Jwell DYSSJ single shaft shredder

Place of Origin:

China

Brand Name:

Dyun

Certification:

ISO CE
INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Instructions：



DYSSJ shredder series from cooperation of sturdy pushing feeder and directional heavy bearing, which make the operation

more safety..Standard pushing feeder is equipped to the DYSSJ shredder, which makes it easier to shred big blocks pallet

and wood.

Different feeding hopper can be designed according to customer’s requirements. Standard feeding hopper is suitable to

feed large quantities and big blocks of material. This kind of  hopper can make optimal production. The mechanical pusher

push material to rotor continuously, so the output is high. Automatic shredding process can not make it stuck.



Main technical parameters：

MODEL

CRUSH CHAMBER MAX. SIZE

(MM)

DRIVE POWER

(KW)

ROTOR BLADE QUANTITY

     (PIS)

FIXED BLADE QUANTITY

(PIS)

ROTOR BLADE SWING DIAMETER

(MM)

ROTOR SPEED (RPM)

DYSSJ- 850

700*730

37

60

3*2

Ф435

37

DYSSJ- 1200

800*1010

55

81

4*2

Ф505

37

DYSSJ- 1500

800*1290

75

102

5*2

Ф505

37

DYSSJ- 2000

800*1850

2*55

144

7*2

Ф505

37



Note:The specifications are subject to change without prior notice.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
