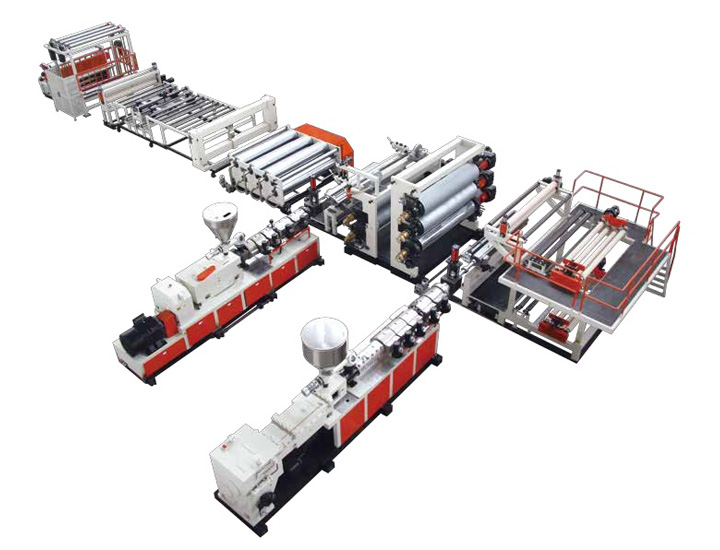

High Polymer Composite Waterproof Roll Extrusion Line
|
Place of Origin: |
China |
|
Brand Name: |
Jwell |
|
Certification: |
ISO CE |
- Details
- Factory Video
- Competitive Advantage
- Packing & Shipping
Instructions:
Used for different kinds of plastic material, such as PVC, TPO, PE etc.Being able to produce below sheets:
Plastic roll sheet (model: H): without coating with inner reinforced material or outer material.
Roll sheet with outer fiber (Model: L): coating with fiber or non-woven fabric.
Inner reinforced roll sheet (Model: P): Inner layer coats with polyester mesh.
Inner reinforced roll sheet (Model: G): Inner layer coats with glass fiber


Main technical parameters:
|
Model |
SJZ92/188-SJZ80/156 |
SJP130/36-SJZ92/188 |
JWS150—JWS120 |
|
Products width |
1200-2000mm |
2000mm |
2000mm |
|
Products thickness |
0.5-3.0mm |
0.5-3.0mm |
1-2mm |
|
Capacity |
800-900kg/h |
1200-1300kg/h |
1000-1100kg/h |
Note:The specifications are subject to change without prior notice.
