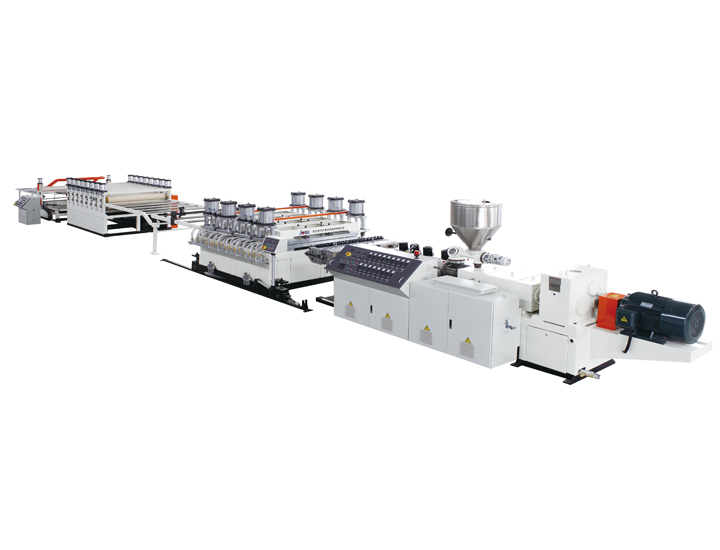

PVC Semi-Skinning(WPC) foam board Extrusion Line

Place of Origin:

China

Brand Name:

Jwell

Certification:

ISO CE
INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Instructions：

 PVC foam board also named snow board and andy board,the chemical component is polyvinyl chloride,also can

 be named foam polyvinyl chloride board.

 PVC -semi-skinning foam manufactruing technique is combine free foam technique and semi-skinning

 foam to develop new technology,this equipment have advanced structure simple formulation easy operation etc.

 features.

 The feature of PVC semi-skinning foam board

 1、waterproof 、anti-flame、anti-acid&akali 、anti-moth、 light weight 、heat preservation、 sound insulation 、shock absorption.

 2 、the process same with wood,but manufactruing perfomance is much better than wood.

 3、Ideal substitute for wood、aluminum composite board.





Main technical parameters：



Model

Semi-skinning foaming board

Core foaming board

width(mm)

1220

1560

2050

1220

thickness(mm)

5-20

8-18

8-15

5-20

Type

SJZ80 / 156

SJZ92 / 188

SJZ92 / 188

SJZ80 / 156 + SJZ65 / 132

Capacity(kg/h)

400

550

550

500

Main motor power

75kw

132k2

132kw

75kw + 37kw

Note: The specifications are subject to change without prior notice.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
