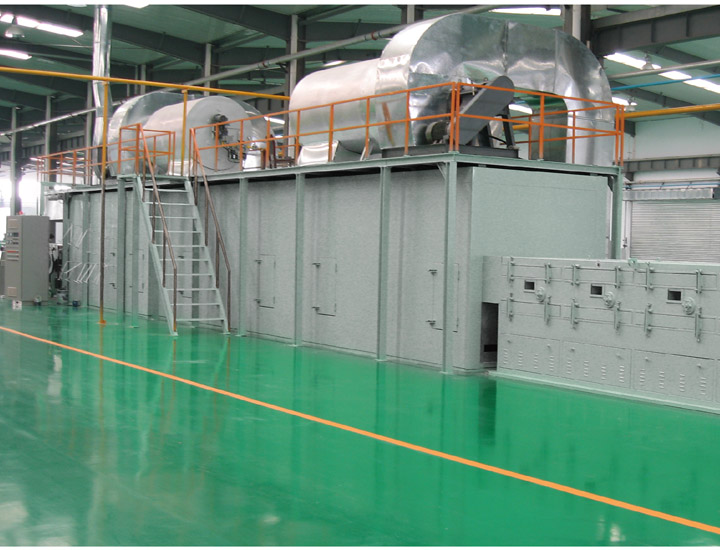

XPE, IXPE Foaming Sheet Extrusion Line

Place of Origin:

China

Brand Name:

Jwell

Certification:

CE ISO

INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Description:

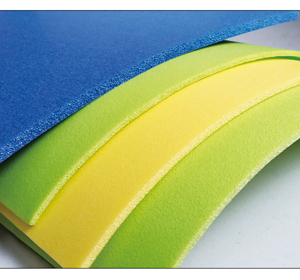

XPE foaming material features: its structure is independent closed-cell material, so it also has heat insulation, moisturizing function, while reducing noise and water resistance, plus its own heat resistance, aging resistance, chemical resistance , in particular, in line with international environmental requirements .

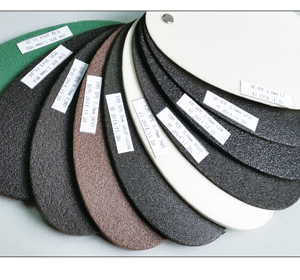

IXPE sheet’s  surface is smooth,close and vesicle is tiny and even.



Specifications:

Extruder

JWS90

JWS120

JWS150

JWS180

Screw dia.(mm)

90

120

150

180

L/D

28 :1

28:1

28:1

28:1

Screw speed R/Min

10-38

10-38

10-38

10-38

Foaming times

5-35

5-35

5-35

5-35

Cooling method

Water cooling

Capacity(Max)Kg/h

80

120

180

350

Product width(mm)

1100

1100-1300

1100-1400

1100-1600

Product thickness(mm)

2-6

2-6

3-12

3-12

Total power(KW)

200

315

400

450



Note:The specifications are subject to change without prior notice.



Applications:

XPE foaming sheet can by widely used in central air conditioning project,pipe project,large container,advanced composite layer; bag lining ,packaging of integrated circuit board,sole of advanced sports shoes,cushion and heat insulation for car,decoration material,floating material and single or double coat adhesive tape and so on.

IXPE sheet is widely used in building,chemical pipe,thermal projects,car and boat manufacturer ,package ,agriculture ,fishery,gym and musement fields.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
