  • https://www.jwellchina.com/img/jwz_bmjy30_50_100_blow_molding_machine.jpg

JWZ-BMJY30/50/100 Blow Molding Machine

Place of Origin:

China

Brand Name:

Jwell

Certification:

ISO CE
INQUIRY
  • Details
  • Factory Video
  • Competitive Advantage
  • Packing & Shipping

Description:
Performance and advantages

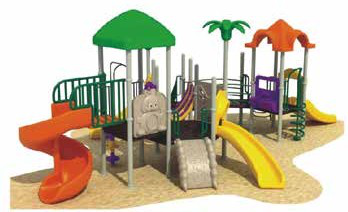

Suitable for producing different size of children safety chair, desk board, playgroud facilities.
Adopt high output extrusion system,accumulating die head.
According to the different material, optional JW-DB single station hydraulic screen-exchanger system.
According to the different product size, customized the platen type and size.
Optional hydraulic servo control system.
Optional bottom sealing,product eject, core-pulling movement elements.



Specifications:

Model

Unit

BM30

BM50

BM100

Max product volume

L

30

50

100

Dry cycle

Pc/h

600

450

360

Die head structure

Accumulating type

Main screw diameter

mm

80

90

100

Max plasticizing capacity (PE)

kg/h

120

180

190

Driving motor

Kw

37

45

55

Accumulating volume

L

5.2

6.2

12.8

Oil pump motor power

Kw

15

18.5

22

Clamping force

KN

280

400

600

Space between platen

mm

400-900

450-1200

500-1300

Platen size W*H

mm

740*740

 880*880

1020*1000

Max.mould size

mm

550*650

 700*850

800*1200

Heating power of die head

Kw

20

28

30

Machine dimension L*W*H

m

4.3*2.2*3.5

 5.6*2.4*3.8

5.5*2.5*4.0

Machine weight

T

12

13.5

16

Total power

Kw

95

110

135


Note:The specifications are subject to change without prior notice.

1. Jwell is the largest plastic extrusion machine manufacturer in China.We work closely with world famous brand , your equipment can also be equipped with  any component brand you wish .

2. Jwell has twin parrel screw extrusion test line and single screw test line . Our test lab support you test under realistic production conductions as well as further enhance your processing technology through our test and help you choose the right type of equipment .

3. Working with Jwell you can be confident that your service and maintenance requirements will be correctly documented and that you have exactly the right resources and skills in place before start-up. Our experienced team will work with you to identify the people, resources and process documentation you will need to support your maintenance activities.
4. Jwell provides technical, driving and systems training to employees and engineers from supplier from all over the world.

All the machines are packaged by our professional team, will be packed by wooden pallet. For some important spare parts, we will pack with the wooden box.
