JWZ-BMHG160/230 Blow Molding Machine
Place of Origin: |
China |
Brand Name: |
Jwell |
Certification: |
ISO CE |
- Details
- Factory Video
- Competitive Advantage
- Packing & Shipping
Description:
Performance and advantages

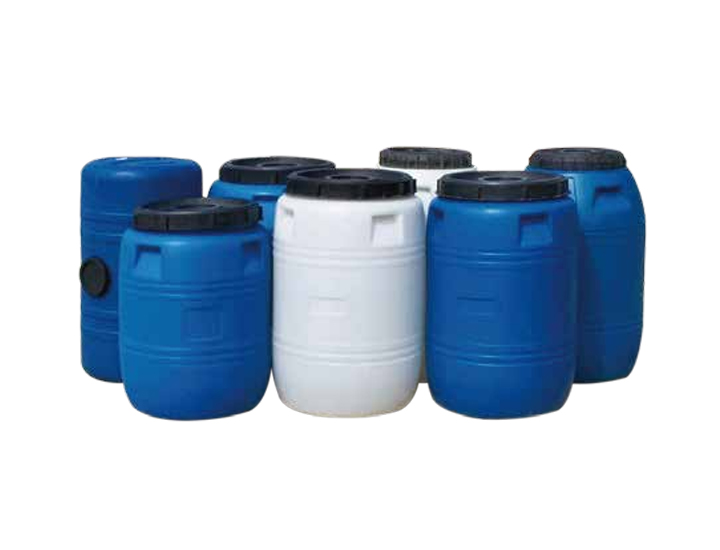

Suitable for producing 100-220L open-top drums, dou ble"L"ring drums.
Adopt high output extrusion system, accumulating die head.
Optional hydraulic servo control system.
Specifications:
Model |
Unit |
BM160 |
BM230 |
Max product volume |
L |
160 |
230 |
Dry cycle |
Pc/h |
300 |
280 |
Die head structure |
|
Accumulating type |
|
Main screw diameter |
mm |
100 |
120 |
Max plasticizing capacity (PE) |
kg/h |
240 |
350 |
Driving motor |
Kw |
90 |
132 |
Accumulating volume |
L |
18 |
24 |
Oil pump motor power |
Kw |
22 |
22 |
Clamping force |
KN |
800 |
900 |
Space between platen |
mm |
500-1400 |
800-1800 |
Platen size W*H |
mm |
1120*1200 |
1320*1600 |
Max.mould size |
mm |
900*1450 |
1200*1800 |
Heating power of die head |
Kw |
30 |
36 |
Machine dimension L*W*H |
m |
7*3.5*4 |
8.2*3.5*5.5 |
Machine weight |
T |
20 |
36 |
Total power |
Kw |
172 |
230 |
Note:The specifications are subject to change without prior notice.
